H1

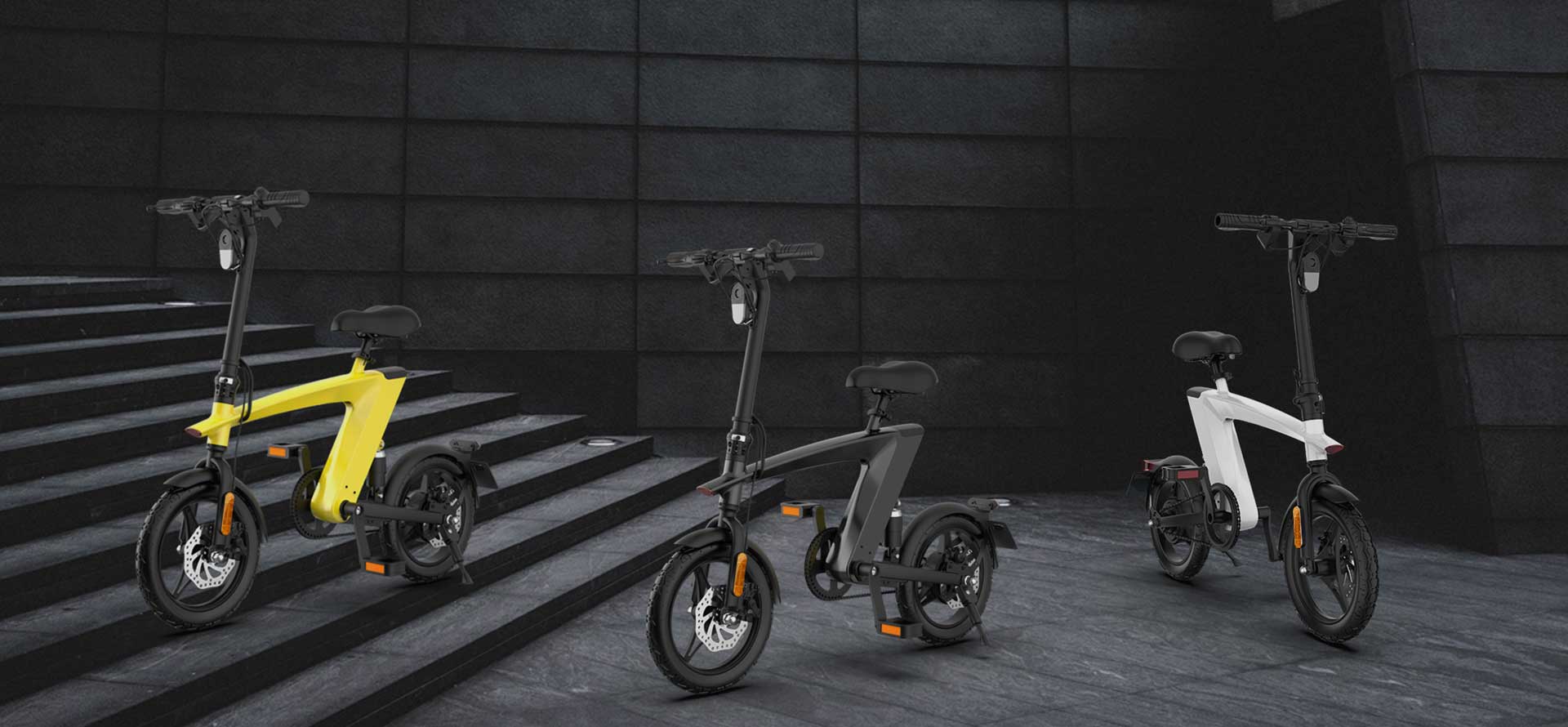

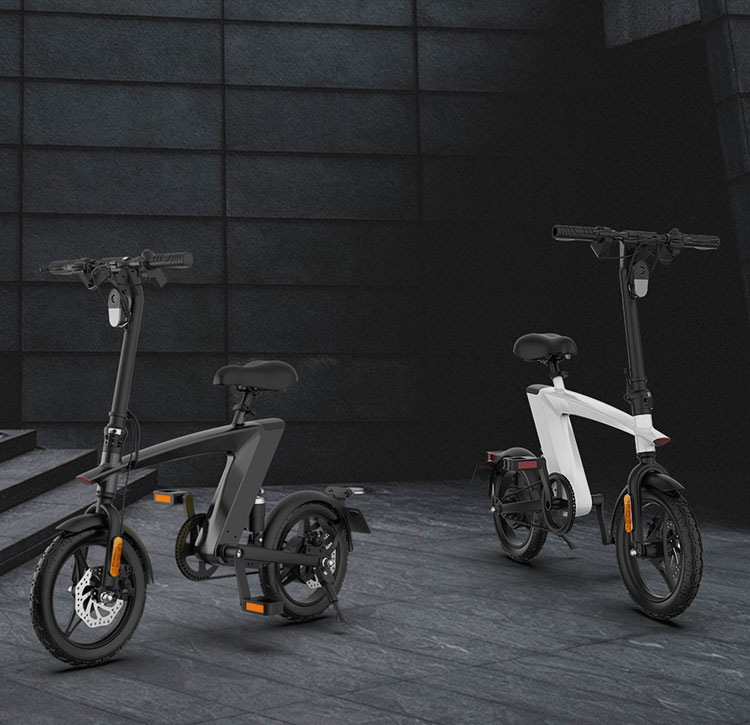

Flying Fish Mini E-bike

Light Control and Cool Travel

  • Car paint technology
  • Independent removable Battery
  • Foldable and Adjustable seat
Color:
Get a quote Play Video


Product display video

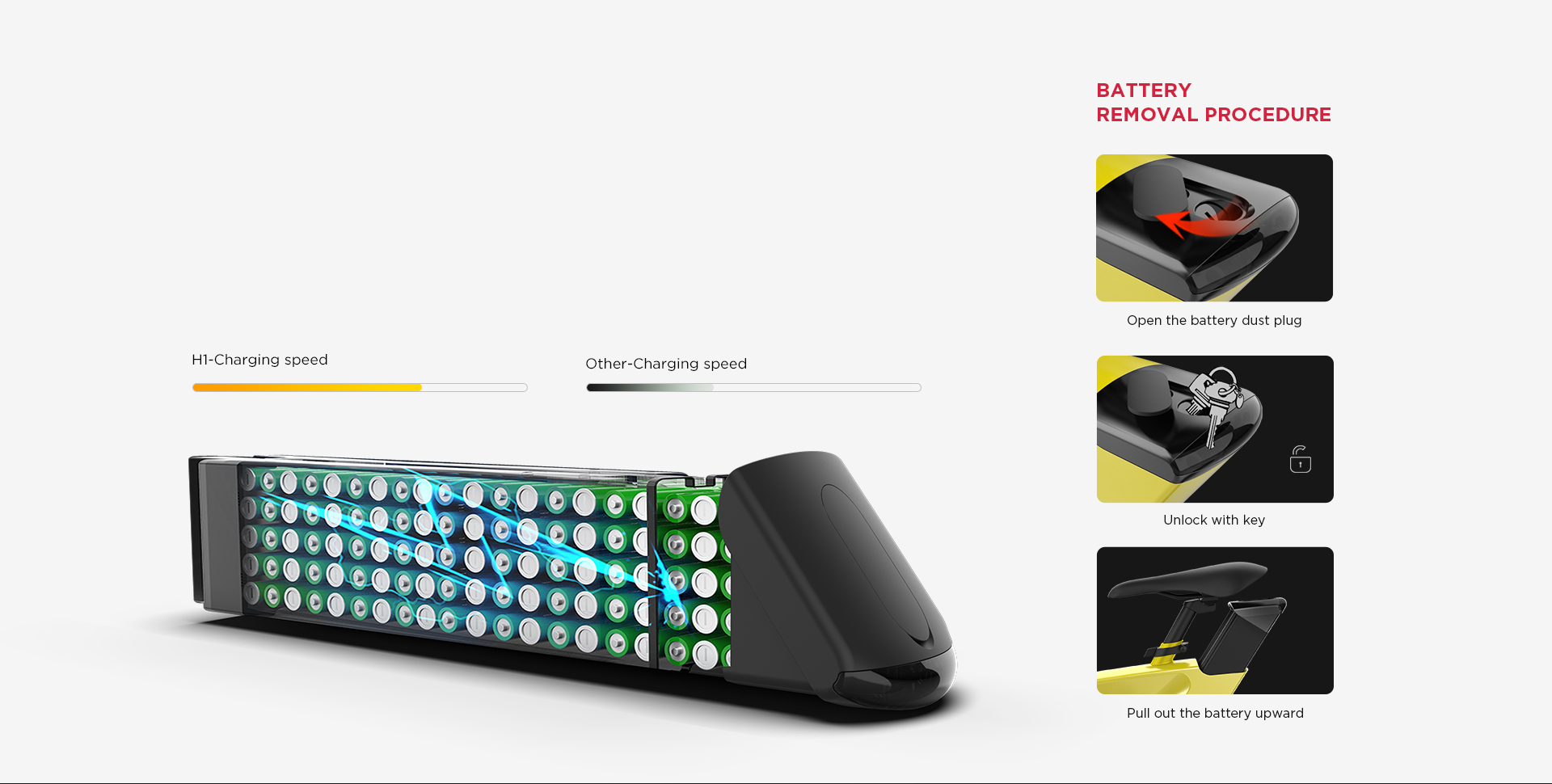

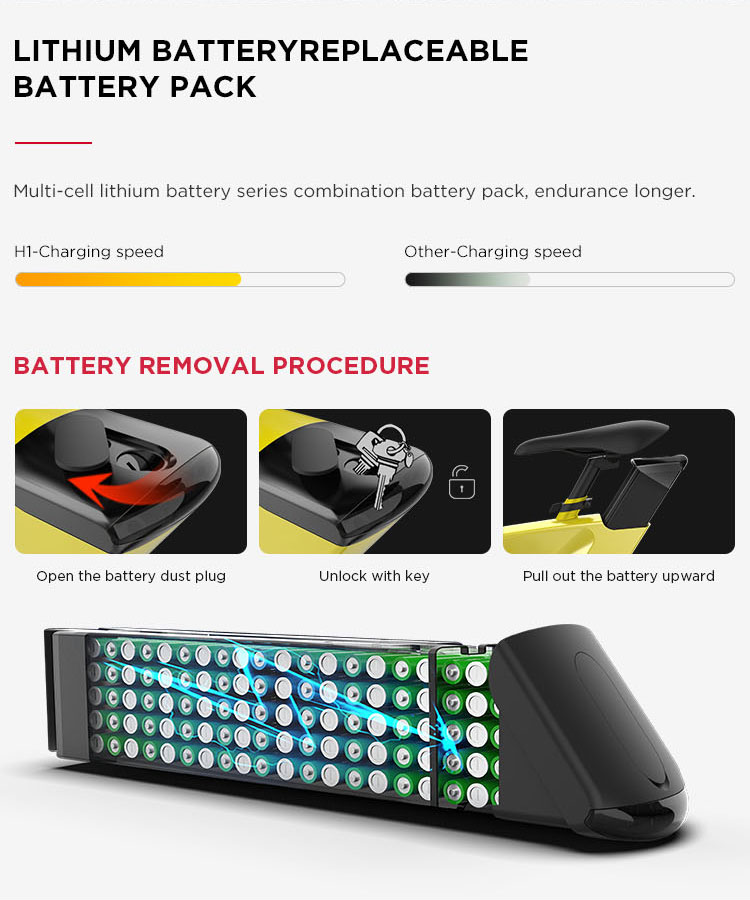

Lithium battery
Replaceable battery pack


Multi-cell lithium battery series combination
battery pack, endurance longer.

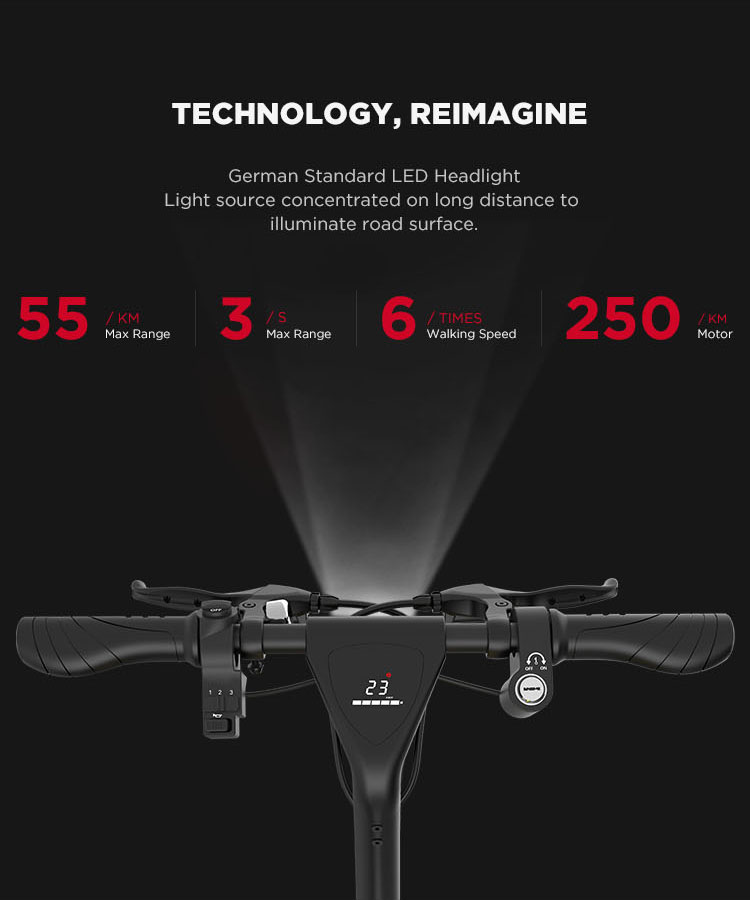

Technology, Reimagine

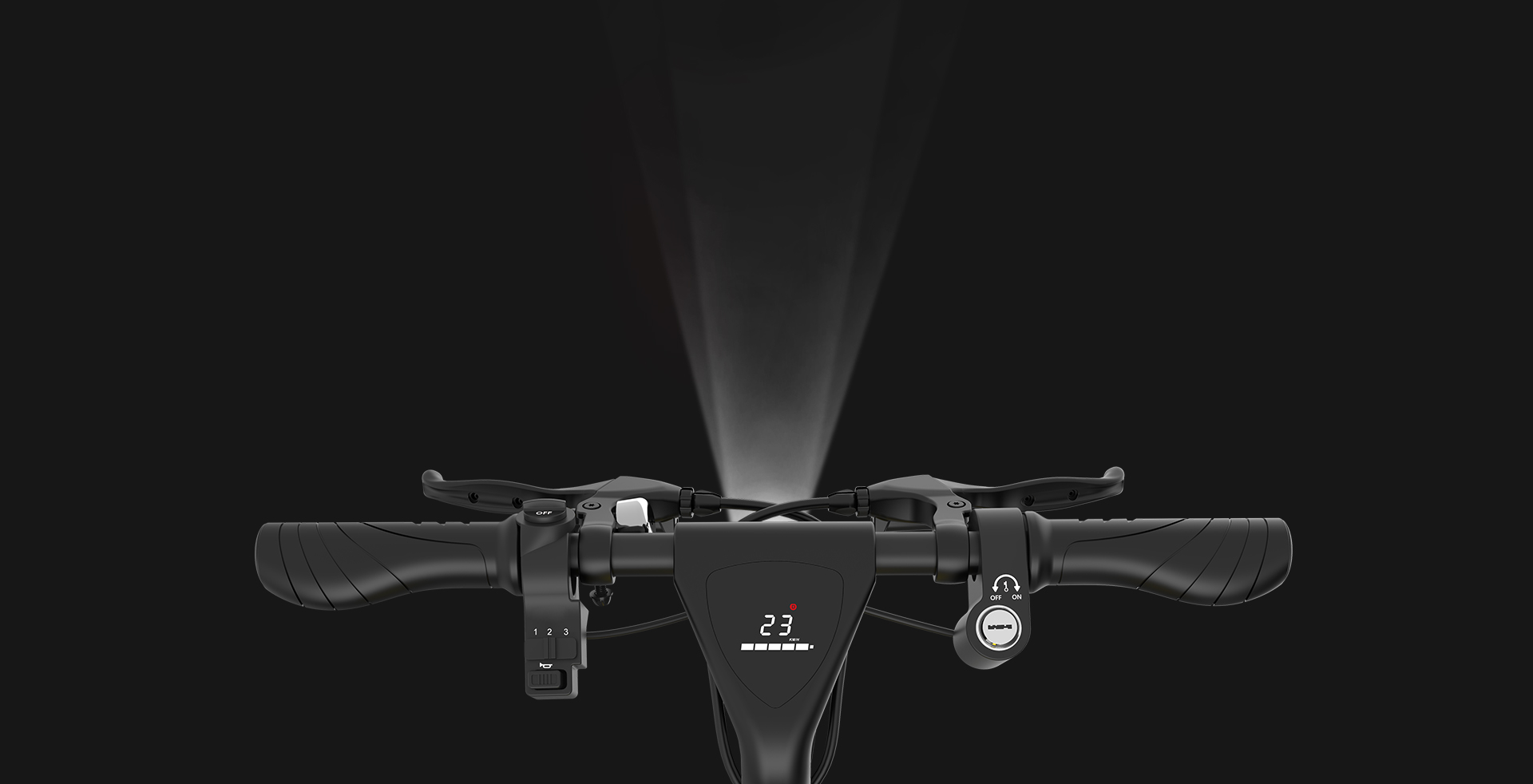

German Standard LED Headlight
Light source concentrated on long distance to
illuminate road surface.

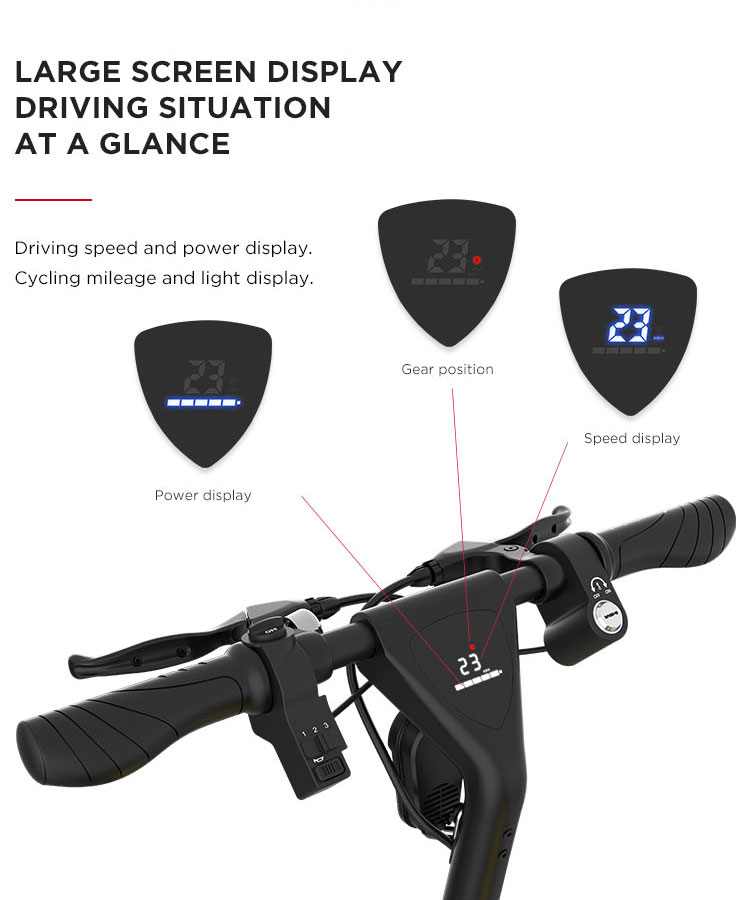

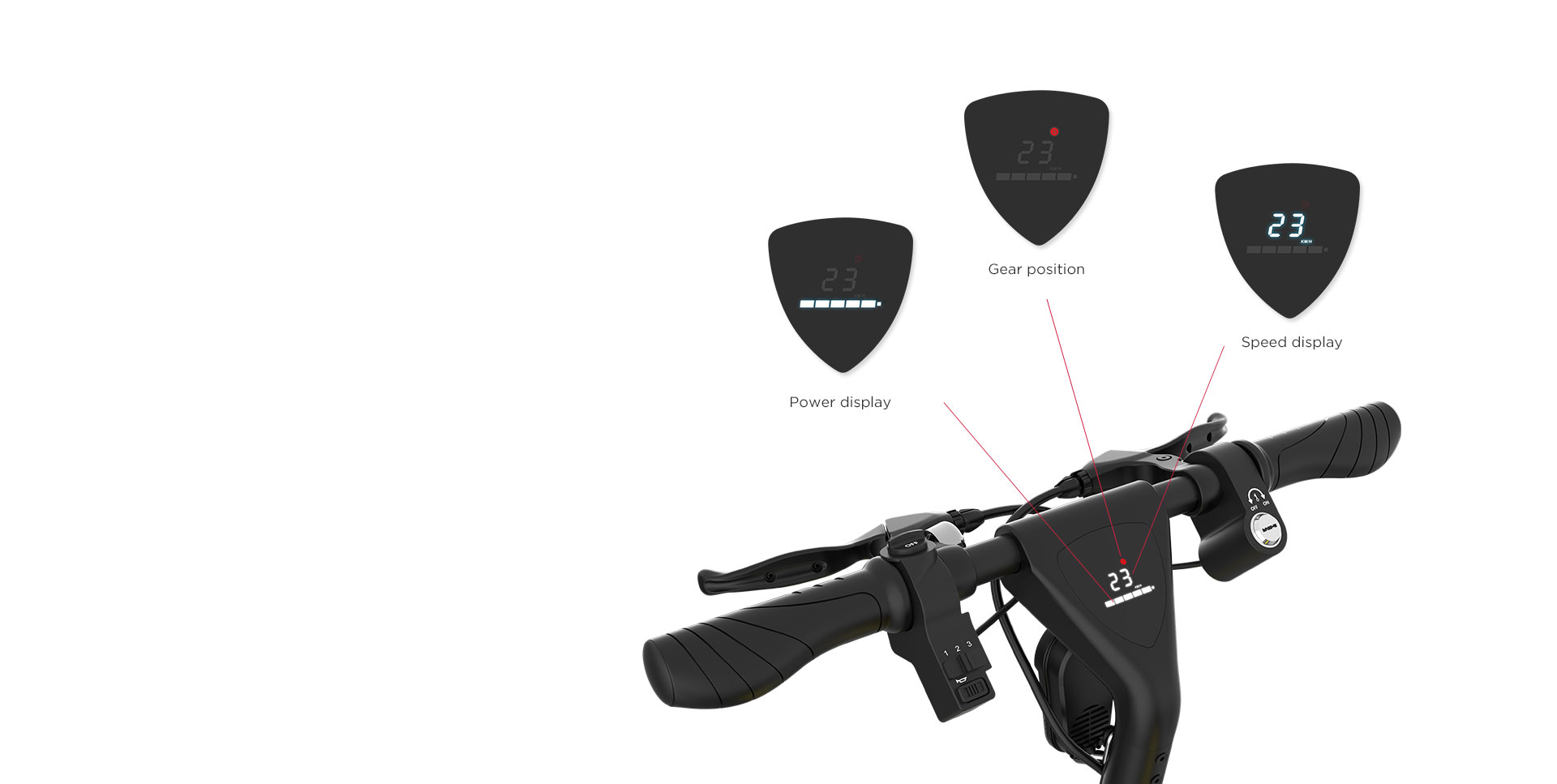

Large screen display
Driving situation
at a glance


Driving speed and power display.
Cycling mileage and light display.

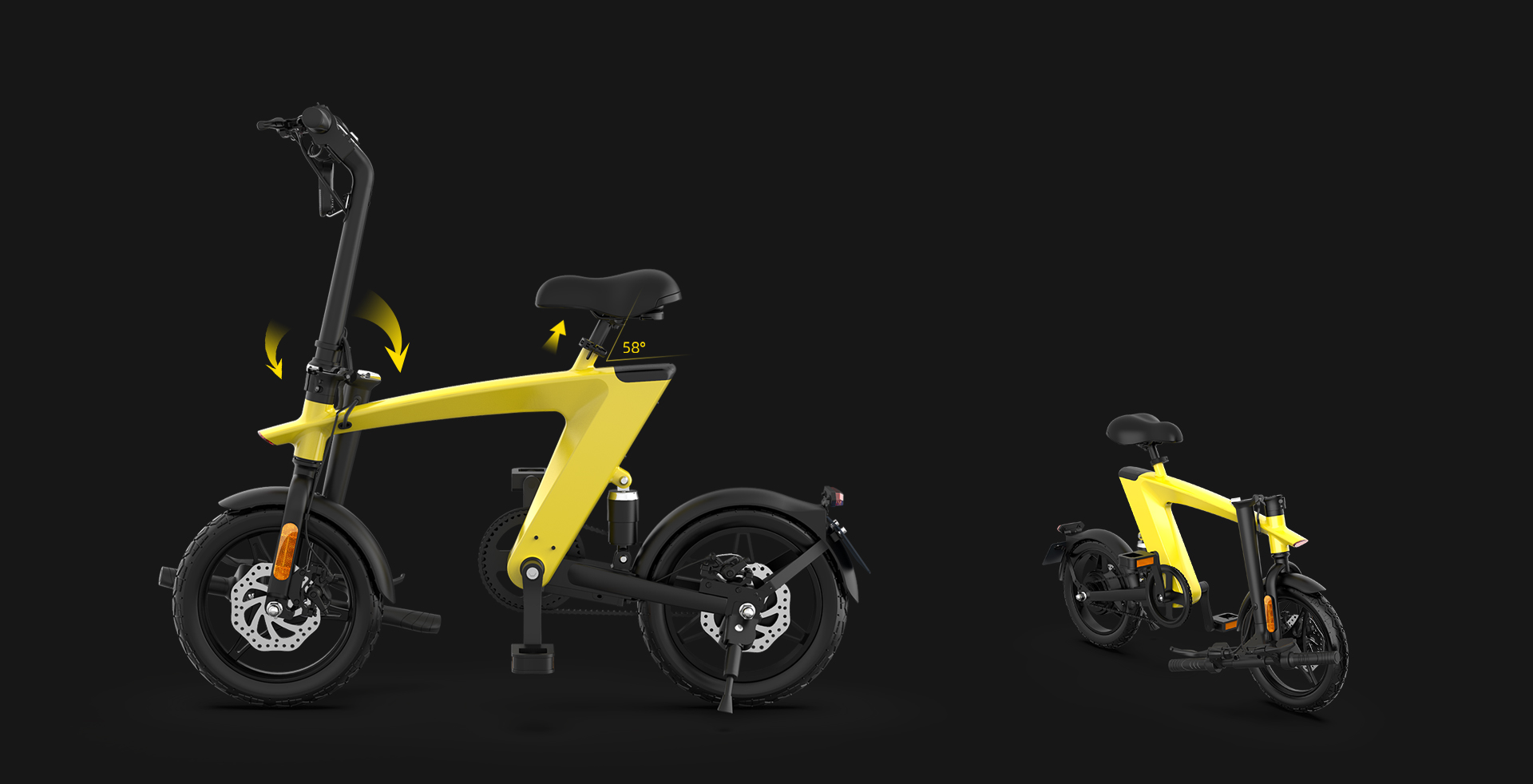

Industrial design paradigm
Streamlined dynamic visual impact

Geometric streamlined appearance.

A lightning-fast sense of movement, flying around the city.

7-shaped aluminum frame, water casting molding.

Light and durable.

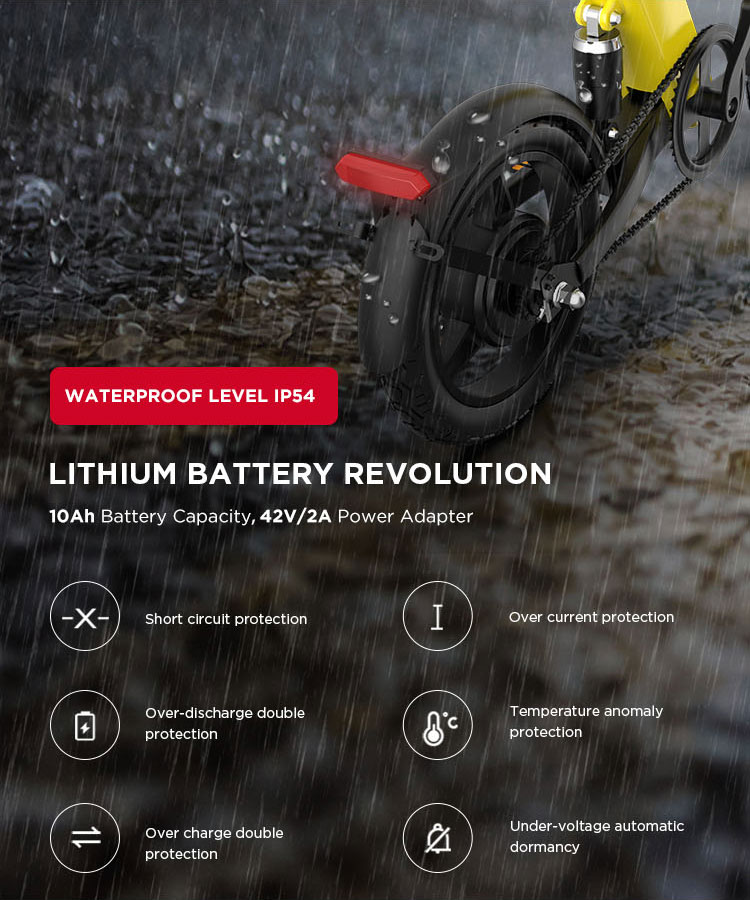

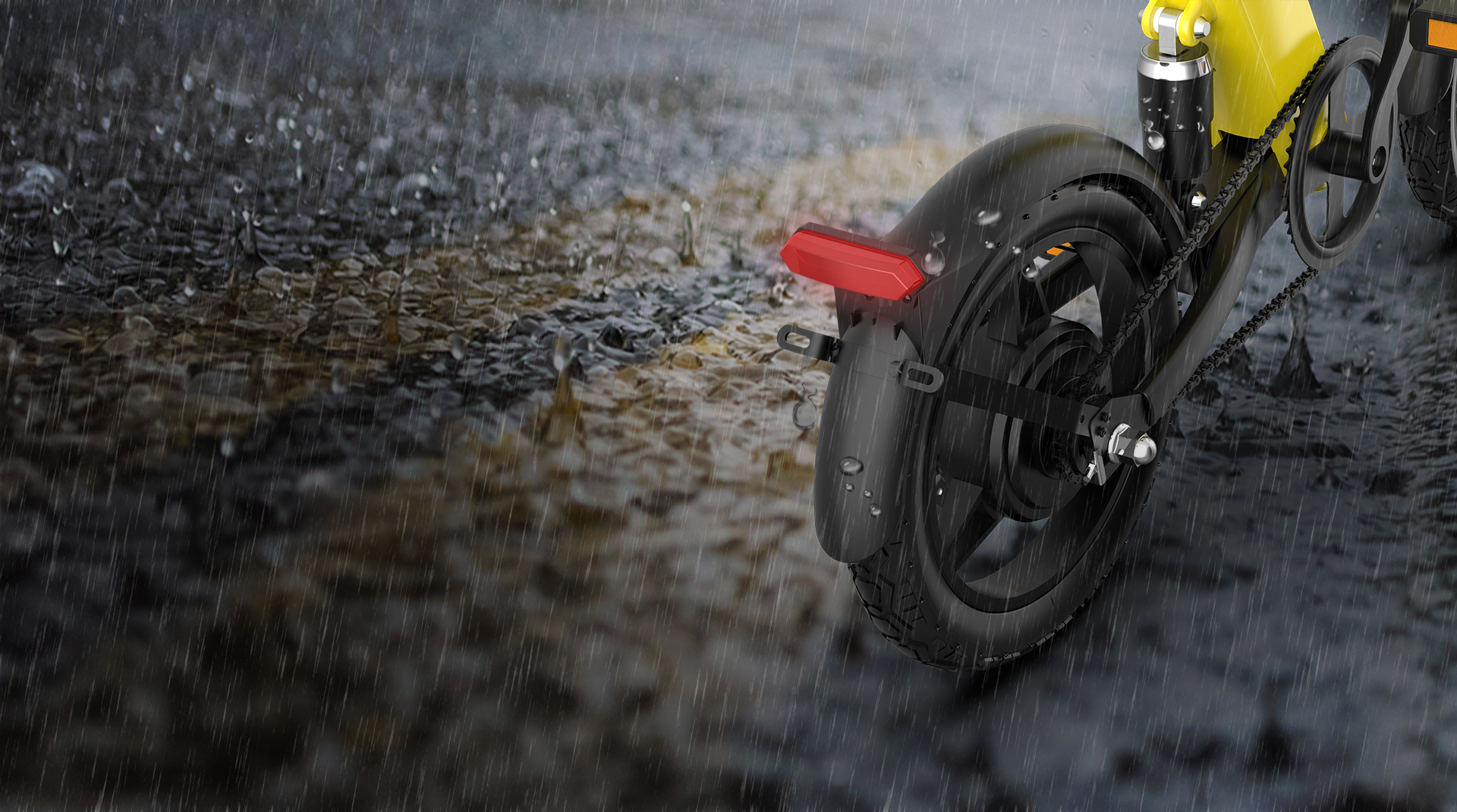

Waterproof level IP54

Lithium battery revolution

10Ah Battery Capacity, 42V/2A Power Adapter

Easy and effortless

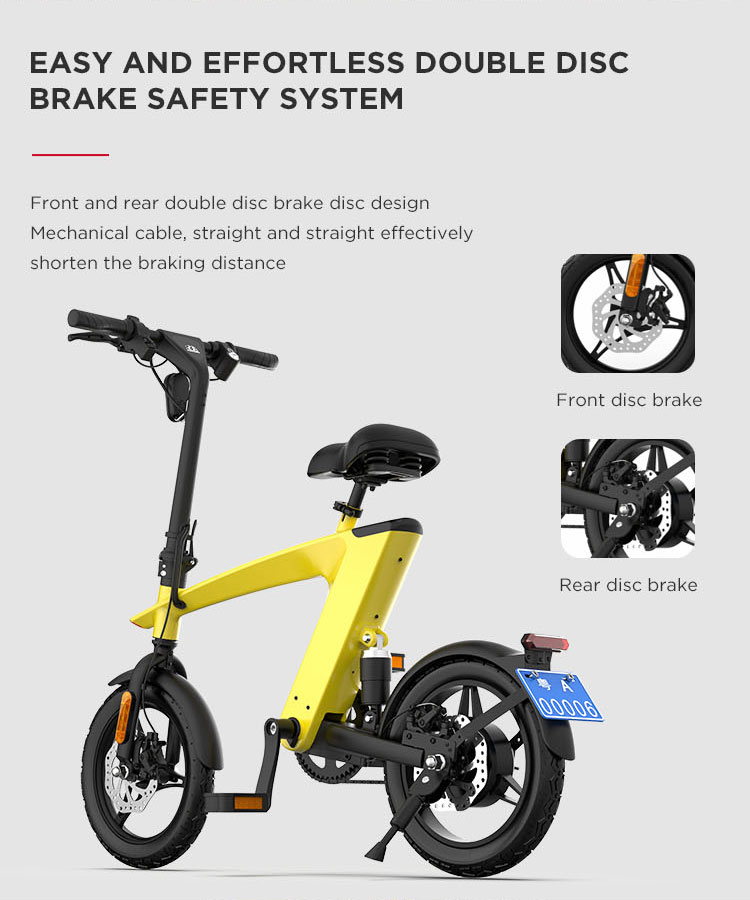

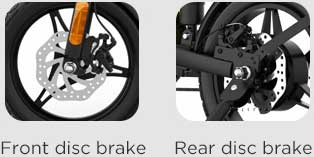

Double disc brake
safety system


Front and rear double disc brake disc design
Mechanical cable, straight and straight effectively
shorten the braking distance

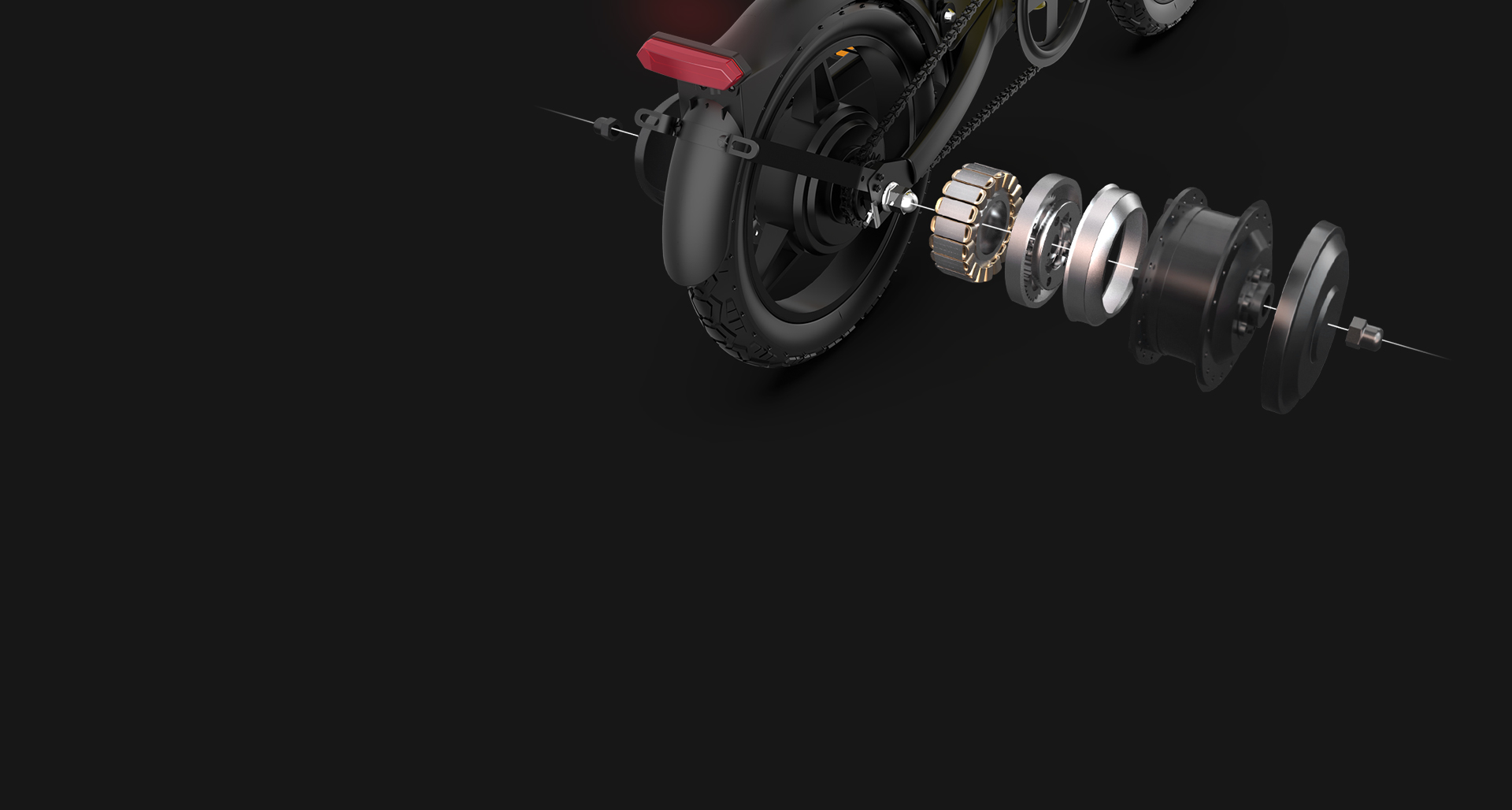

250W Powerful
driving force
Brush-less silent
power motor


Speed and passion coexist. Adapt to various road conditions

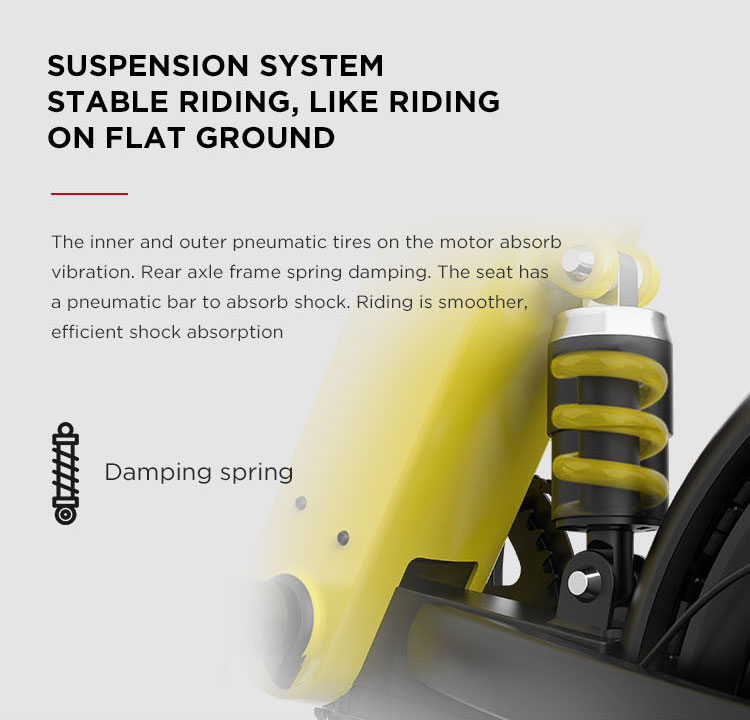

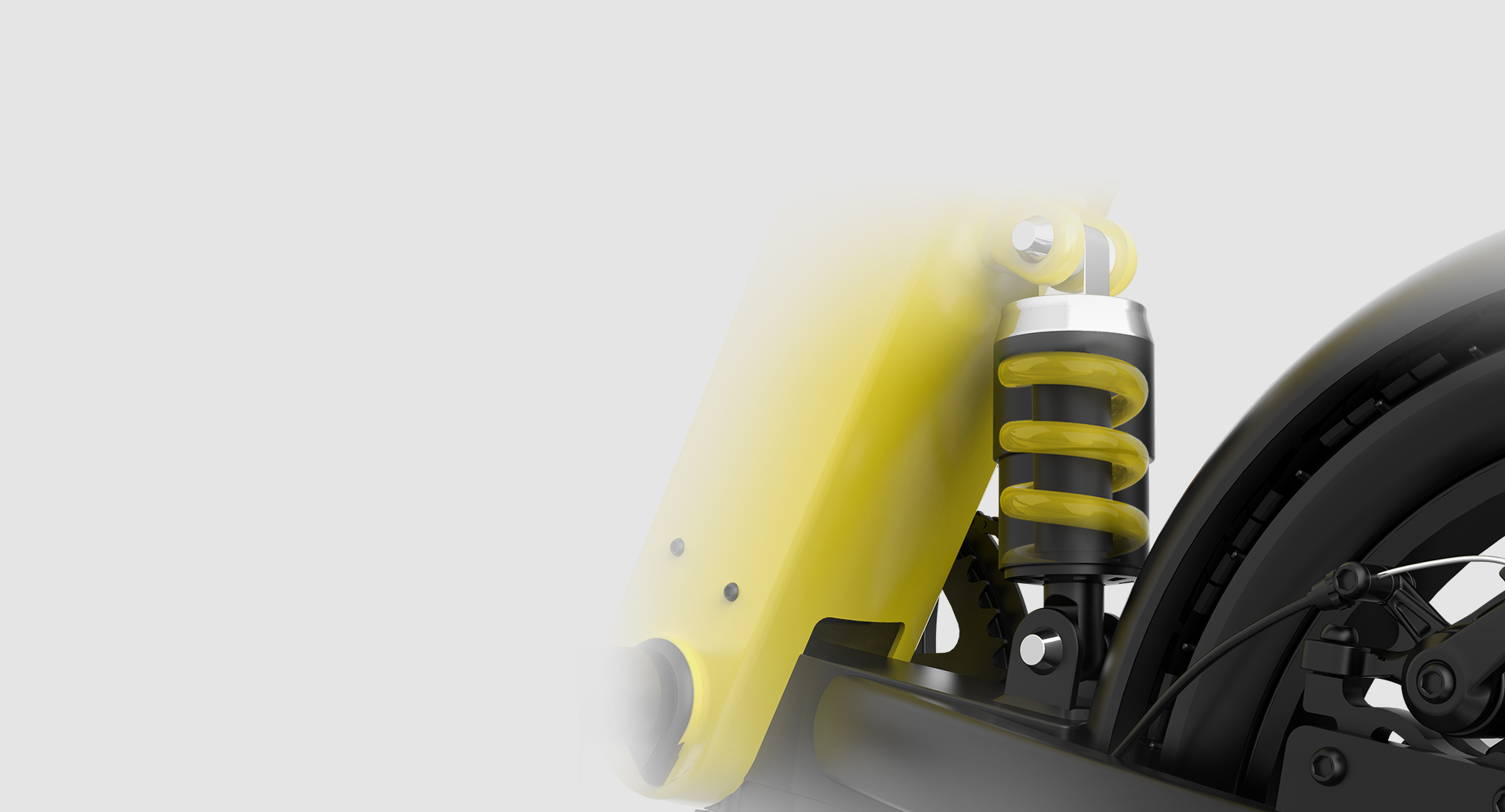

Suspension system
Stable riding, like riding
on flat ground


The inner and outer pneumatic tires on the motor absorb
vibration. Rear axle frame spring damping. The seat has
a pneumatic bar to absorb shock. Riding is smoother,
efficient shock absorption

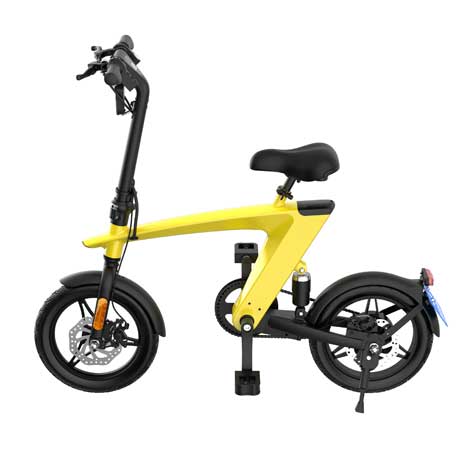

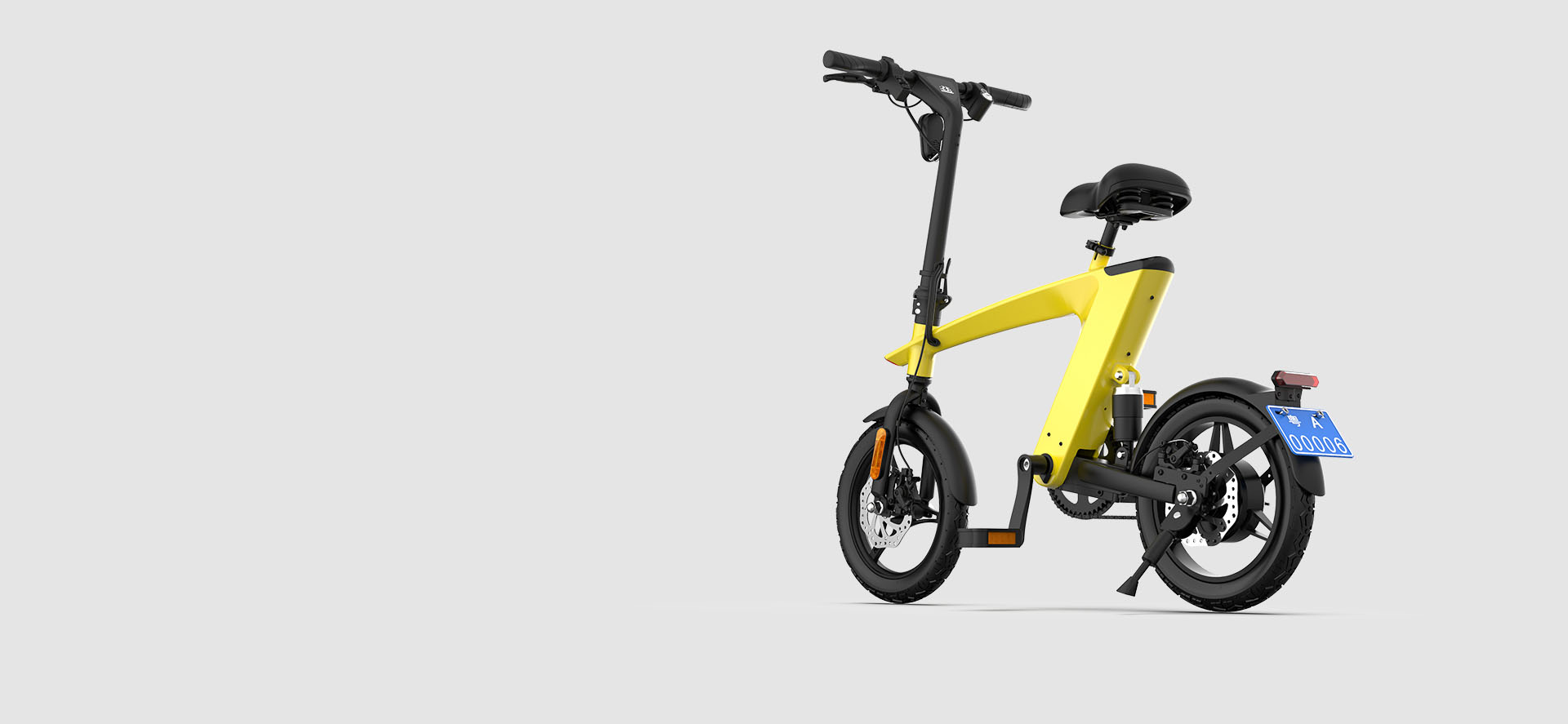

H1 Flying Fish Mini E-bike

H1 Flying Fish Mini E-bike H1 Flying Fish Mini E-bike
Model H1 H1 MAX
Open size 1180*470*1090mm 1180*470*1090mm
Folding size 1180*350*760mm 1180*350*760mm
Pedal shaft ground clearance 250mm 250mm
Minimum ground clearance 60mm 60mm
Frame materials Aluminum alloy Aluminum alloy
Net weight 21kg 22kg
Rim size 14inch 14inch
Frame color black, white, yellow black, white, yellow
Motor 36V/250W 48V/400W
Maximum torque 22N.M 34N.M
Battery capacity 36V/10AH 48V/7.5AH
Charger parameters 42V/2A 54.6V/2A
Max speed 25km/h 35km/h
Pure electric range 25-35km 25-35km
Power assist range 70-75km 70-75km
Climb angle 15° 20°
Max load 100kg 100kg
Riding mode Ridding / Hall pedal assist / Electric Ridding / Hall pedal assist / Electric
Charging time 5-6h 4-5h

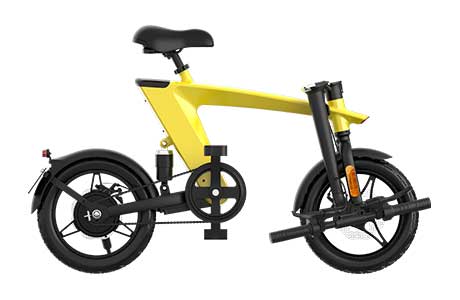

Folding features Pole folding / Seat forward flip Pole folding / Seat forward flip
Seat height Adjustable Adjustable
Seat suspension Seat spring+Pole spring Seat spring+Pole spring
Battery detachable feature Direct plugin with mechanical lock Direct plugin with mechanical lock
Suspension Rear shock absorber with spring Rear shock absorber with spring
Brake mode Front and rear dual disc brake Front and rear dual disc brake
Assist mode Hall sensor, 3 speed gears Hall sensor, 3 speed gears
Acceleration mode Throttle accelerator, Sigle mode Throttle accelerator, Sigle mode
Warning Electric horn Electric horn
Light LED light LED light
Rear warning features Tail light Tail light
Protection leval IPX4 IPX4
Operation temperature 0~40℃ 0~40℃
Storage temperature -10~40℃ -10~40℃
Charging environment temperature 0~35℃ 0~35℃
Usage site Flat paved road, open sites without obstacles Flat paved road, open sites without obstacles
Spare parts Charger adaptor, Manual, Wrench Charger adaptor, Manual, Wrench
Carton size 1200*230*700mm 1200*230*700mm
Gross weigt 26kg 27kg
